STANDARD SERVICE: data received prior to 14:00 -> dispatch within 48 hour (working days)
EXPRESS SERVICE: data received prior to 10:00 -> the same day dispatch
FOUR BASIC TYPES OF STENCILS

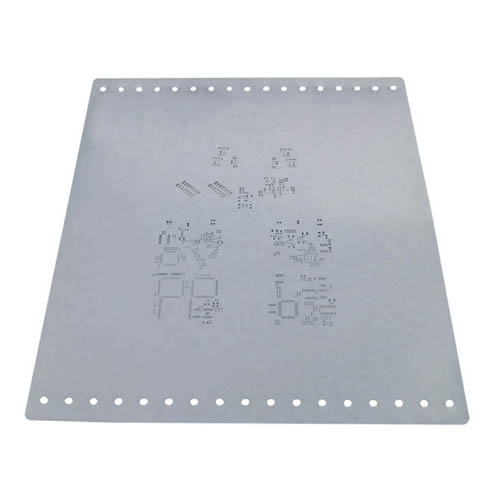

Frameless
- Standard dimensions up to 556 x 609mm
- Thickness 80, 90, 100, 120, 130, 150, 200µm
- Step stencil

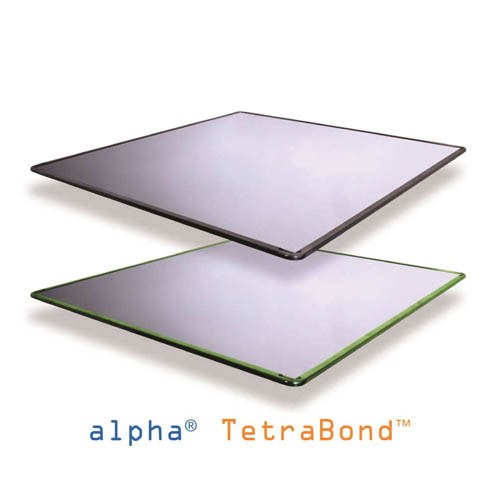

Alpha TetraBond
- Standard dimensions 23×23”, 23×29”
- Thickness 100, 120, 130, 150µm
- Step stencil

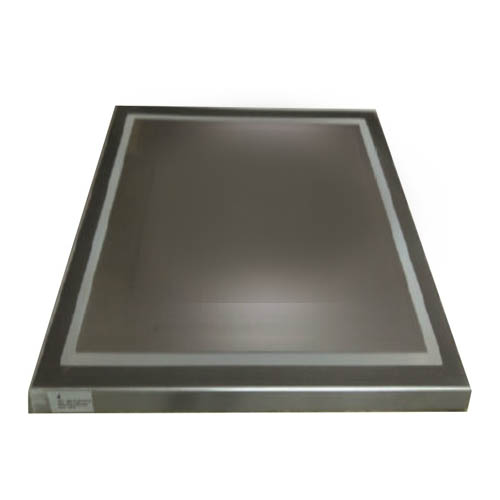

AL frame
- Standard dimensions 23×23”, 29×29”
- Thickness 100, 120, 130, 150µm
- Step stencil

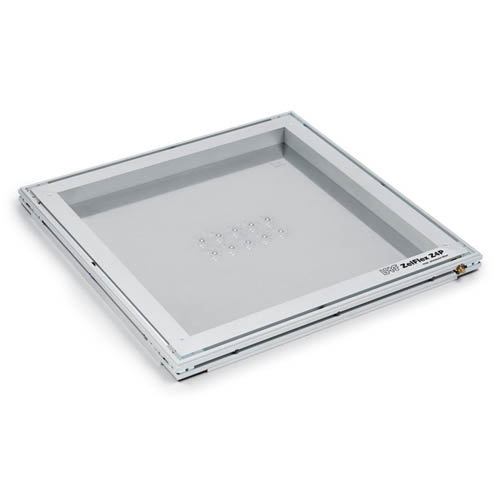

ZelFlex
- Standard dimensions 23×23”, 23×29”
- Thickness 80, 100, 130, 150, 200µm
- Step stencil
Comments
- standard data processing included:
rotation and mirroring
motive placement (Motoprint, Uniprint, QuattroFlex-LTC, ZelFlex)
several motives placement to one stencil - charged data processing e.g. modification of pad geometry (24,-Eur/hour)
- standard shipment cost – up to 3 pcs of frameless stencils per parcel
- shipment of frame stencils – weight dependent
Nano-ProTek is an easily applied, stencil coating technology that renders the stencil surface ‘fluxophobic’. It increases cleaning effectiveness and reduces cleaning frequency.
- Reduces the ability of solder paste to smear or bridge on underside of the stencil
- Improves the efficiency of the USC to clean the stencil
- Increased throughput by reducing the frequency of cleaning
- Less cleaning means less USC fabric and chemistry usage
